FEATURES

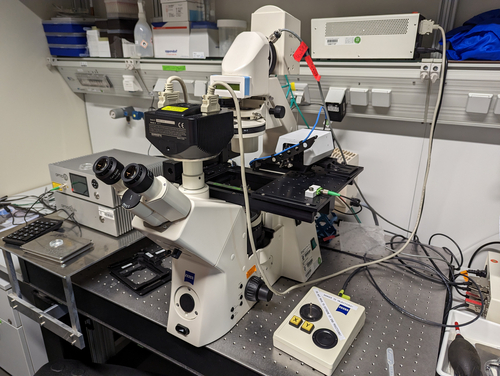

Zeiss Axiovert 200M inverted motorized stand for routine transmitted light and fluorescence observation
Suitable for fixed samples, fluorescence, transmitted light, z-stacks
Equipped with a Chiaro Nanoindenter from Optics11Life
ILLUMINATION
Transmitted light (halogen)
Fluorescence (HBO and Excite)
FILTERS
Stand: pos1: DAPI (Ex BP 388/18, LP 414, Em BP 446/62); pos2: eGFP (Ex BP 469/40, LP 495, Em BP 514/38); pos3: TexasRed (Ex BP 560/40, LP 588, Em BP 615/40); pos4: Cy5 (Ex BP 640/30, D BP 706/84, Em BD 685/45); DIC
DETECTION
Diagnostic Instruments RT SPOT monochrome camera
OBJECTIVES
Zeiss Plan Neofluar 1.25x (0.0035 NA) Air
Zeiss Plan Neofluar 5x (0.15 NA) Ph1
Zeiss Plan Apo 10x (0.45 NA) Air
Zeiss LD Plan Neofluar 20x (0.4 NA) Ph2
Zeiss Plan Apo 20x (0.75 NA) Air
Zeiss LD Achroplan 40x (0.6 NA) Ph2
Zeiss Plan Neofluar 40x (0.75 NA) Air
Zeiss Plan Neofluar 40x (1.3 NA) Oil Ph3
Zeiss Plan Neofluar 63x (1.25 NA) Oil
Zeiss Plan Neofluar 100x (1.3 NA) Oil
SOFTWARE
Molecular Devices MetaMorph
Software for nanoindenter
