FEATURES

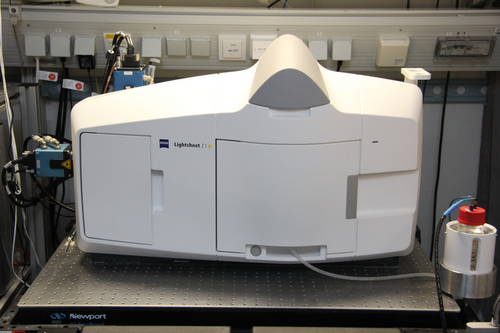

Zeiss LightSheet Z.1 special stand with lateral illumination and detection geometry
Dual-side illumination light sheet for better illumination and light penetration, as well as adjustable light sheet thickness, and reduced shadowing
Suitable for 3D, time-lapses, and multiview imaging in live or fixed / cleared samples
Dedicated sample holder
Temperature and CO2 control
ILLUMINATION
Laser diode 405 nm
Laser DPSS 445 nm
Laser DPSS 488 nm
Laser DPSS 514 nm
Laser DPSS 561 nm
Laser DPSS 639 nm
Transmitted light (LED)
More information about the laser power measurements can be found here
FILTERS
Laser blocking filters (LBFs): 405/488/561, 405/488/561/640, 405/488/640, ND4 (RGB)
Default filter wheel: Mirror; SP 490 / LP 505 (dichromatic mirror LP 490); BP 505-545 / LP 660 (dichromatic mirror LP 580) ; SP 550 / LP 585 (dichromatic mirror LP560; BP 575-615 / LP 660 (dichromatic mirror LP640); BP 460-500 / BP 525-565 (dichromatic mirror LP 510
Brainbow filter wheel: Mirror; BP 420-470 / LP660 (dichromatic mirror LP 490); BP 460-500 / BP 525-565 (dichromatic mirror LP 510); BP 505-530 / BP 575-615 (dichromatic mirror LP 560); SP 550 – LP 585 (dichromatic mirror LP 560); / – LP 640 (dichromatic mirror LP 640)
DETECTION
2 PCO edge 5.5m, Monochrome sCMOS cameras (SN 61000966, 61004862)
OBJECTIVES
Illumination (two-sided):
Two Zeiss 10x (0.2 NA) Air
Detection:
Zeiss 5x (0.1 NA) Air
Zeiss EC Plan-Neofluar (0.16 NA) Air
Zeiss EC Plan-Neofluar (0.16 NA) Air DIC
Zeiss Plan Apo 20x (1.0 NA) Water DIC
Zeiss Plan Apo 40x (1.0 NA) Water DIC
Zeiss Plan Apo 63x (1.0 NA) Water DIC
SOFTWARE
Zeiss ZEN 2014 SP1 9.2.10.54
