FEATURES

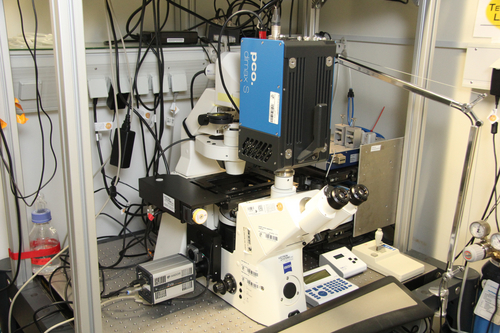

Zeiss Axiovert 200M inverted motorized microscope
Suitable for fast and super-fast imaging of samples in (chambered) slides, 35 mm dishes, and multi-well plates
Equipped for microfluidics (pumps)
ILLUMINATION
Transmitted light (LED)
Fluorescence (LED: CoolLED pE-4000 with 16 lines: pE-4000 | LED Light Sources | CoolLED LED Illumination System)
FILTERS
Reflectors: DAPI, HC-Quad-SET (AHF F68-888), GFP/DsRed, DAPI/FITC/DsRed, ET GFP 49002
DETECTION
Andor Zyla 4.2 (VSC-02730)
PCO DIMAX (SN 9000000436)
OBJECTIVES
Zeiss Plan Neofluar 5x (0.15 NA) Air Ph1
Zeiss Plan Neofluar 10x (0.3 NA) Air Ph1
Zeiss LD-Achroplan 20x (0.4 NA) Air Ph2
Zeiss Plan-Neofluar 25x (0.8 NA) Oil/Gly/Water
Zeiss Plan-Neofluar 40x (0.75 NA) Air Ph2
Zeiss C-Apo 40x (1.2 NA) Water
Zeiss LD-Achroplan 63x (0.75 NA) Air Ph2
Zeiss Plan-Neofluar 100x (1.3 NA) Oil Ph3
Zeiss Plan Apo 100x (1.4 NA) Oil DIC
SOFTWARE
Molecular Devices MetaMorph 7.10.2.240
